Overview of Trane 2 Ton 14 SEER 24000 BTU Electric HVAC System | XR14 Series 23600 BTU Air Conditioner Condenser | TEM4 24000 BTU Air Handler | 5 kW Electric Heater | R-410a Refrigerant | Includes Installation

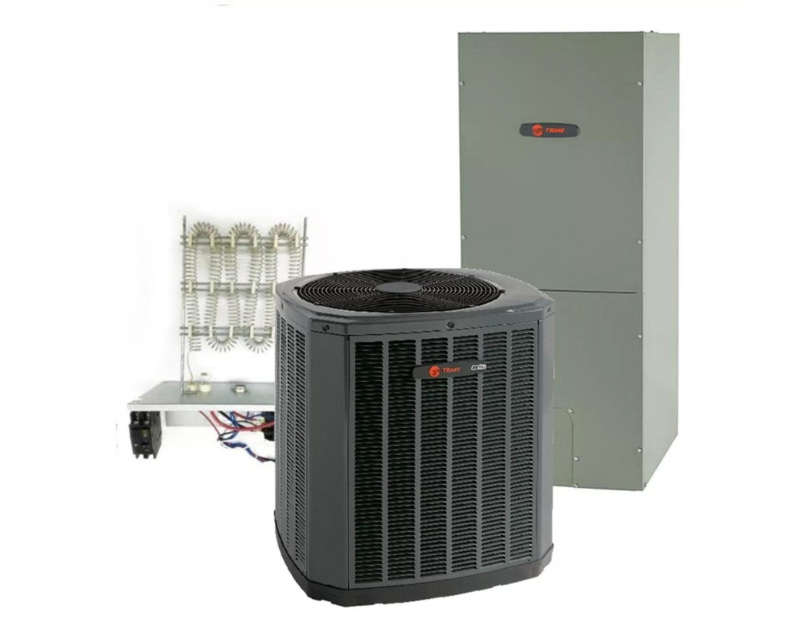

This 2 Ton 15 SEER Electric HVAC System from Trane is highly efficient in meeting your home heating and cooling needs. The complete electric system has 3 major components –
(1) Trane 2 Ton 14.5 SEER XR14 23600 BTU Air Conditioner Condenser 4TTR4024L1000B, (2) Trane 2 Ton 24000 BTU Convertible Air Handler TEM4A0B24S21SB, (3) Trane 5 kW Electric Heater BAYHTR1505BRKC with Breaker
Trane 2 Ton 14 SEER Electric HVAC System
|
|
Nominal Capacity |
2 Tons |
SEER Rating |
15 SEER |
EER Rating |
12.5 EER |
Capacity |
24000 BTU |
Outdoor AC Condenser unit |
Trane 4TTR4036L1000A |
Indoor Air Handler unit |
Trane TEM4A0B24S21SB |
Electric Heater unit |
Trane BAYHTR1505BRKC |
1. Trane 2 Ton 14.5 SEER XR14 23600 BTU Air Conditioner Condenser 4TTR4024L1000B
Trane XR14 Series 2 Ton 23600 BTU 4TTR4024L1000B unit is a 14.5 SEER outdoor Air Conditioner Condenser that is a reliable and efficient air conditioning system suitable for your home and commercial space. Its increased energy efficiency will help lower the HVAC costs of your home as you’d want. The Climatuff Scroll Compressor of this unit ensures quiet operation all day long while its Spine Fin Coil enhances the efficiency of this system.
For corrosion resistance, the condenser unit is equipped with Weatherguard fasteners along with a DuraTuff base pan that ensures corrosion or rust doesn’t cause the AC any trouble. At the same time, the full-slide louvered panels of this 2 ton 14.5 SEER XR14 Series 4TTR4024L1000B unit keep the internal components safe inside.
Features of Trane 2 Ton 14.5 SEER 23600 BTU XR14 AC Condenser
- DuraTuff Non-Corrosive Base Pan
- Spine Fin Coil
- Corrosion-Resistant Weatherguard Fasteners
- Formed Steel Door with the Smoked Acrylic View Windows that offer an attractive look
- The high efficiency EC Motor or Electronically Commutated Motor keeps the heating unit cost-efficient for years
- Full-Side Louvered Panels
- Multi-Port In-Shot Burners
- Aluminized Steel Heat Exchanger for efficient heat exchange & corrosion-resistance Quick-Sess Cabinet with Full Coil Protection
- Climatuff Scroll Compressor for quiet operation and cost-efficiency
- Heavy Steel Insulated Cabinet for longevity
- The materials used for the construction are premium in quality and thus they last much longer
- Silicon Nitride Hot Surface Igniter ensures reliable ignition system
- Premium Grey Finish
- Patented Vortica® II Blower that works quietly while also making the heating system efficient
Specifications of Trane 2 Ton 14.5 SEER XR14 Series 23600 BTU Outdoor Air Conditioner Condenser 4TTR4024L1000B
Condenser Specifications
|
|
Nominal Capacity |
2 Ton |
Cooling Capacity |
23600 BTU |
Compressor |
CLIMATUFF®- SCROLL |
Stages |
Single |
Fan HP |
1/8 |
Fan Diameter |
18.2 Inches |
R-410a Refrigerant |
4 Pounds |
Coil |
SPINE FIN™ |
Chassis Type |
Fixed |
Condenser Electrical Data
|
|
Voltage |
230/208 Volts |
Phase |
1 |
Frequency |
60 Hz |
Minimum Circuity Ampacity |
14 A |
Breaker Circuit Prot. Rtg. (Maximum) |
20 A |
RL Amps |
10.1 A |
LR Amps |
52 A |
Outdoor Fan FL Amps |
0.9 A |
AC Condenser Dimensions
|
|
Line Size – IN. O.D. Gas |
3/4 Inches |
Line Size – IN. O.D. Liquid |
3/8 Inches |
Condenser Height |
29 Inches |
Condenser Width |
29 Inches |
Condenser Depth |
26 Inches |
AC Condenser Weight
|
|
Condenser Weight |
133 Pounds |
Shipping Weight |
153 Pounds |
|
